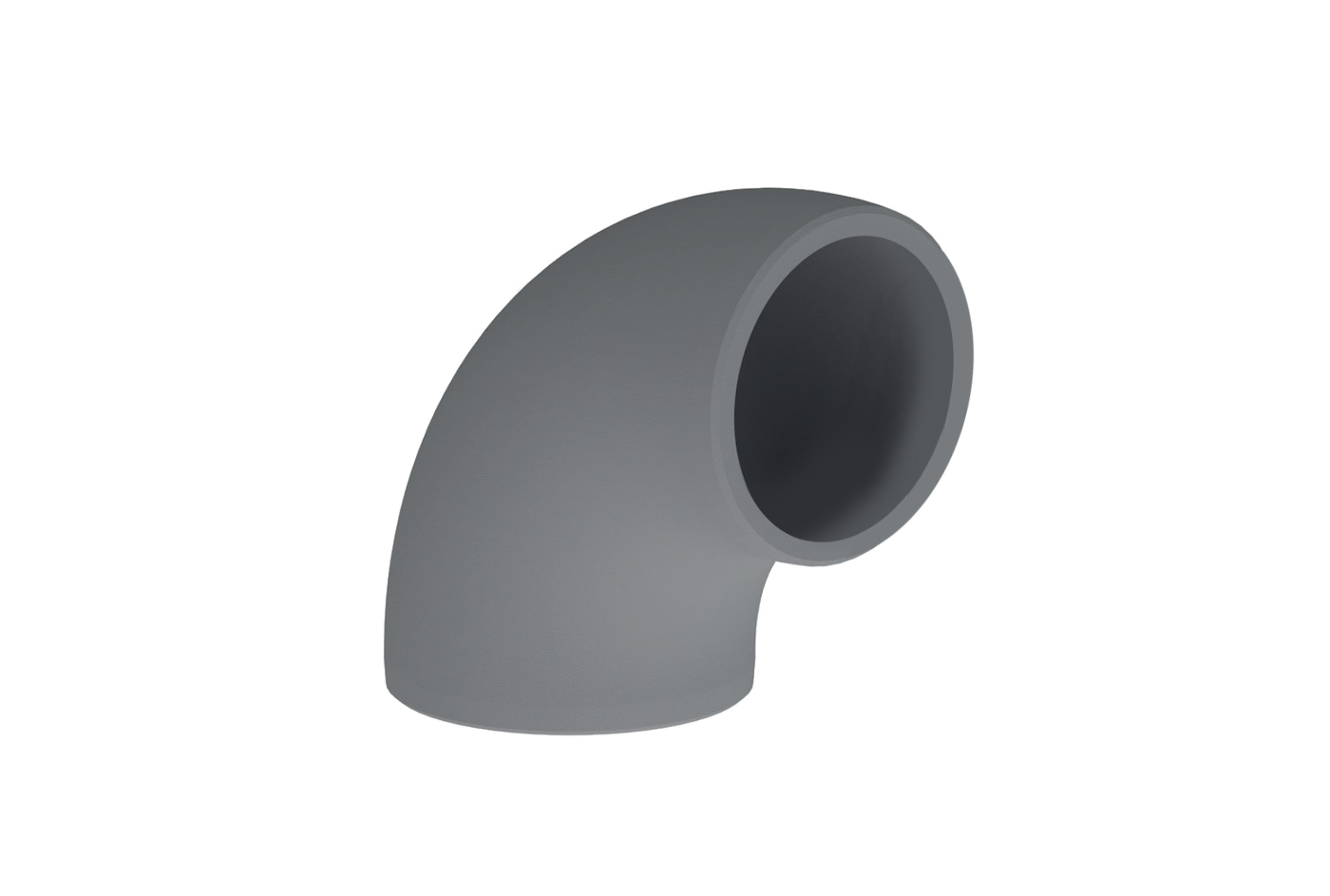

90° elbow in EPS for MVHR Ø125 / Ø160

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS MOD. Ø 125

• Grey colour EPS insulated elbow
• Wall thickness: 15.5mm
• Weight: 0,2 kg;

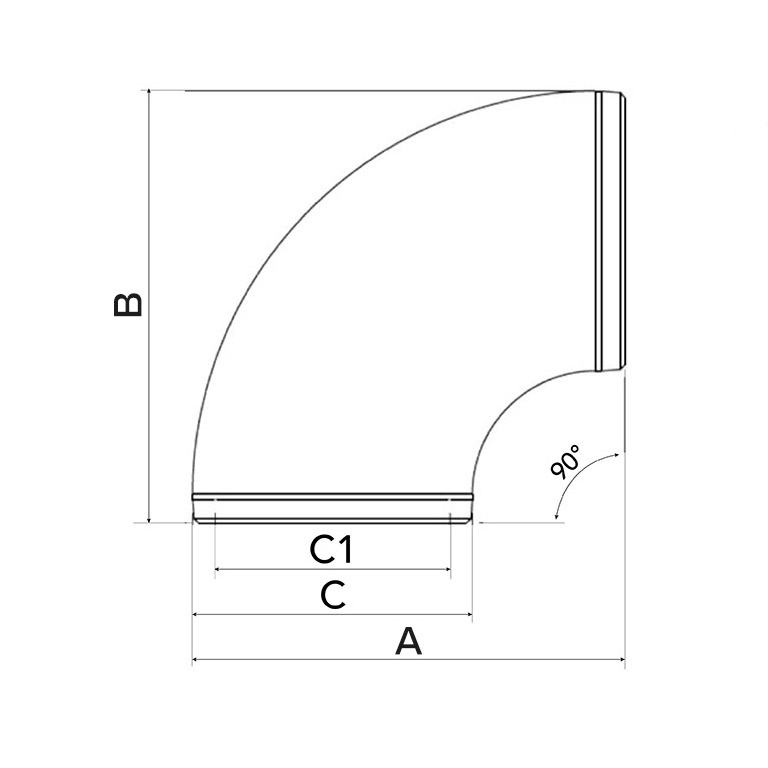

• Dimensions: 278 x 156 x 278 mm
• internal Ø: 125 mm
• Temperature range -25 / +80 (C°)
• Maximum air flow Ø 125: 275 m³/h
• Thermal resistance: 0.032 m²K/W

TECHNICAL SPECIFICATIONS MOD. Ø 160

• Grey colour EPS insulated elbow
• Wall thickness: 15.5mm
• Weight: 0,24 kg
• Dimensions: 295 x 191 x 295 mm
• internal Ø: 160 mm
• Temperature range -25 / +80 (C°)
• Maximum air flow: 425 m³/h
• Thermal resistance: 0.032 m²K/W
