Electrical battery with thermostat for heat recovery from 1000 to 4000 m³/h

Apply.co
Air treatment - MVHR

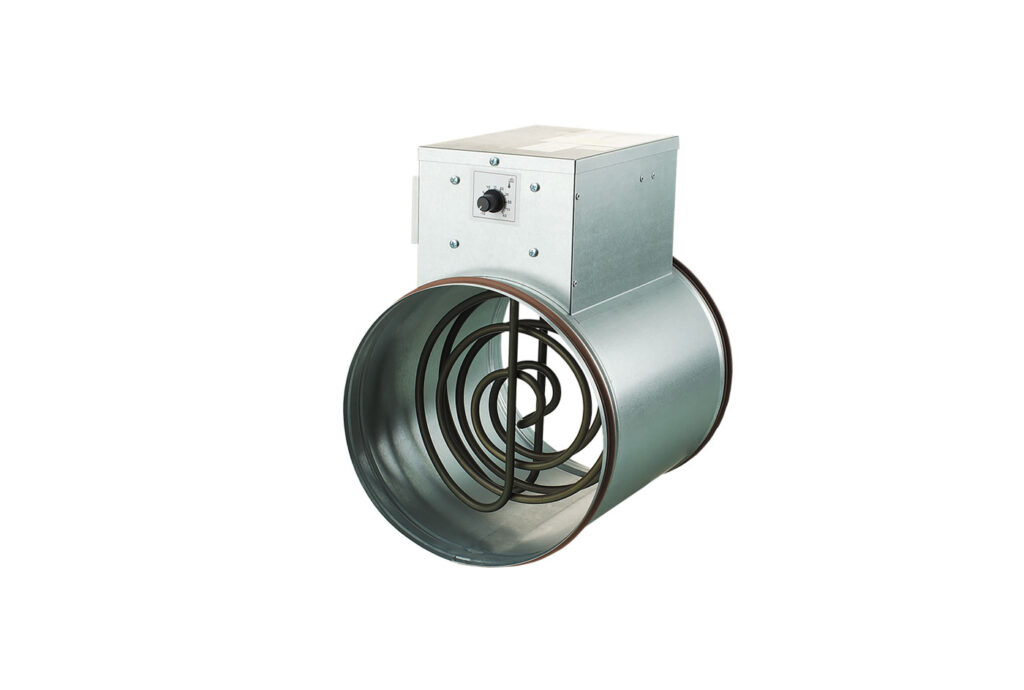

Electrical battery with thermostat for heat recovery from 1000 to 4000 m³/h with wire heating element mounted on a galvanised metal sheet duct.
The battery is complete with:
• automatic reset thermal protector (55°C) and manual reset thermal protector (85°C)
• relay/contactor and terminal board;
• adjustable duct thermostat –30+30°C
The battery is equipped with safety thermostats with automatic and manual reset, calibrated to trip in the event of failure or poor ventilation.
The heater has an auxiliary contact, which allows the remote control of the heating element through a dry contact deriving from an external switch or an ambient thermostat.
The adjustable bulb thermostat -30+30°C installed at the inlet, allows the activation temperature of the heating element to be set. The device is activated automatically when the set temperature is reached.

TECHNICAL SPECIFICATIONS:

• Equipped with thermostat for temperature regulation from -30°C +30°C
• Equipped with two thermoprotectors: +55°C with automatic reset +85°C with manual reset
• To prevent overheating the battery, air flow must always be greater than the minimum flow rate indicated in the table
• Relay/contactor and terminal board;

Models
