Immagine IMG_ACD600121.jpg
View documentation

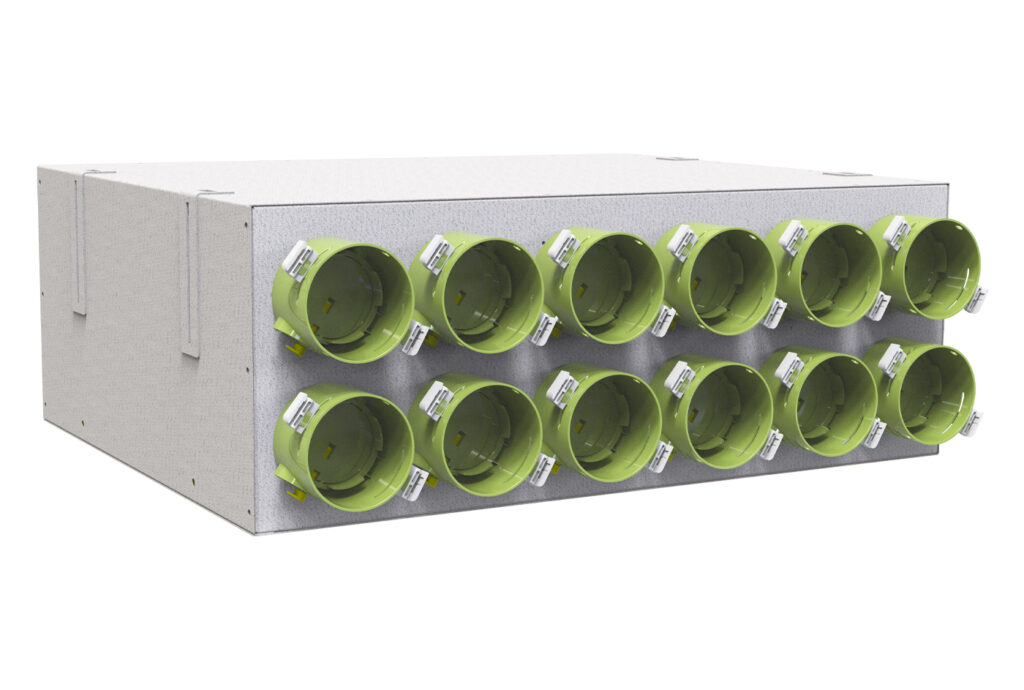

Galvanised metal sheet soundproofed plenum 4-6-8-10-12 outputs Ø 75 with connectors complete with calibration damper with adjustment

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• High sound insulation
• Internal sound absorber thickness 20mm
• Removable soundproofing septa
• Complete with brackets for ceiling mounting
• Output/input collars as per table
• Sleeves complete with calibration damper with graduated adjustment by screwdriver

Models

Available Models (7)

ACD600121

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 4 OUTLETS 150/200

A [mm] 360
B [mm] 240
C [mm] 500
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 4 - 75

ACD600122

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 6 OUTLETS 150/200

A [mm] 360
B [mm] 240
C [mm] 500
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 6 - 75

ACD600123

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 8 OUTLETS 150/200

A [mm] 660
B [mm] 240
C [mm] 500
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 8 - 75

ACD600124

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 10 OUTLETS 150/200

A [mm] 660
B [mm] 240
C [mm] 500
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 10 - 75

ACD600125

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 12 OUTLETS 150/200

A [mm] 660
B [mm] 240
C [mm] 500
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 12 - 75

ACD600126

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 4 OUTLETS 100 / 125 /150

A [mm] 360
B [mm] 240
C [mm] 500
INPUT Ø [mm] 100 / 125 / 150
No.of OUTLETS - Ø [mm] 4 - 75

ACD600127

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 75 - 6 OUTLETS 100 / 125 /150

A [mm] 360
B [mm] 240
C [mm] 500
INPUT Ø [mm] 100 / 125 / 150
No.of OUTLETS - Ø [mm] 6 - 75

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_ACD600121.jpg

  • Technical Data Sheet

    it en fr de
