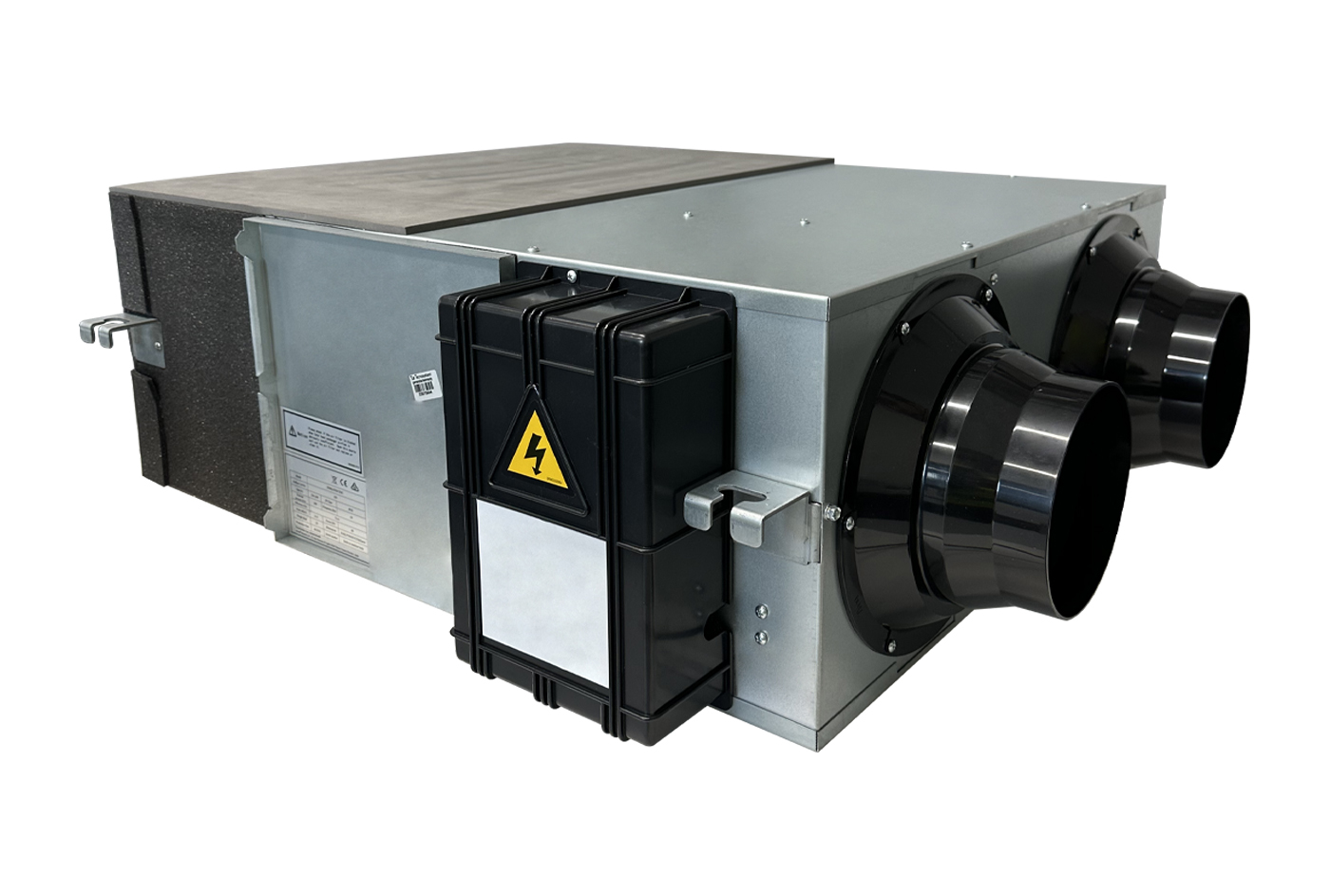

HI-TECH PUR 4.0 Enthalpic heat recovery unit ceiling-mounted ducted

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• For residential and non-residential applications
• Removable enthalpy heat exchanger pack
• Automatic by-pass
• Brushless EC motors
• Internal structure in EPS that prevents conensation and improves thermal insulation
• Backlit LCD digital remote control
• BMS compatible VIA RS485 modbus protocol
• ON/OFF remote control
• Silent function “sleep”
• Defrost Function
• Fire signal input
• Suitable for combination with electric heater
• Extractable filters G3
• Mounting brackets

Models

Available Models (4)

ACD300003

ENTHALPIC HEAT RECOVERY UNIT - Model HI-TECH PUR 4.0 500m3/h

MOD.	500 m³/h
A [mm]	902
B [mm]	867
C [mm]	107
D [mm]	197
E [mm]	833.5
F [mm]	922
G [mm]	20.5
I [mm]	-
L [mm]	451.5

ACD300004

ENTHALPIC HEAT RECOVERY UNIT - Model HI-TECH PUR 4.0 800m3/h

MOD.	800 m³/h
A [mm]	1134
B [mm]	1134
C [mm]	85
D [mm]	202
E [mm]	1068
F [mm]	1189
G [mm]	20.5
I [mm]	-
L [mm]	628

ACD300005

ENTHALPIC HEAT RECOVERY UNIT - Model HI-TECH PUR 4.0 1000m3/h

MOD.	1000 m³/h
A [mm]	1243
B [mm]	1193
C [mm]	85
D [mm]	241
E [mm]	1173
F [mm]	1248
G [mm]	20.5
I [mm]	-
L [mm]	629.5

ACD300006

ENTHALPIC HEAT RECOVERY UNIT - Model HI-TECH PUR 4.0 1300m3/h

MOD.	1300 m³/h
A [mm]	1243
B [mm]	1193
C [mm]	85
D [mm]	241
E [mm]	1173
F [mm]	1248
G [mm]	20.5
I [mm]	-
L [mm]	629.5
