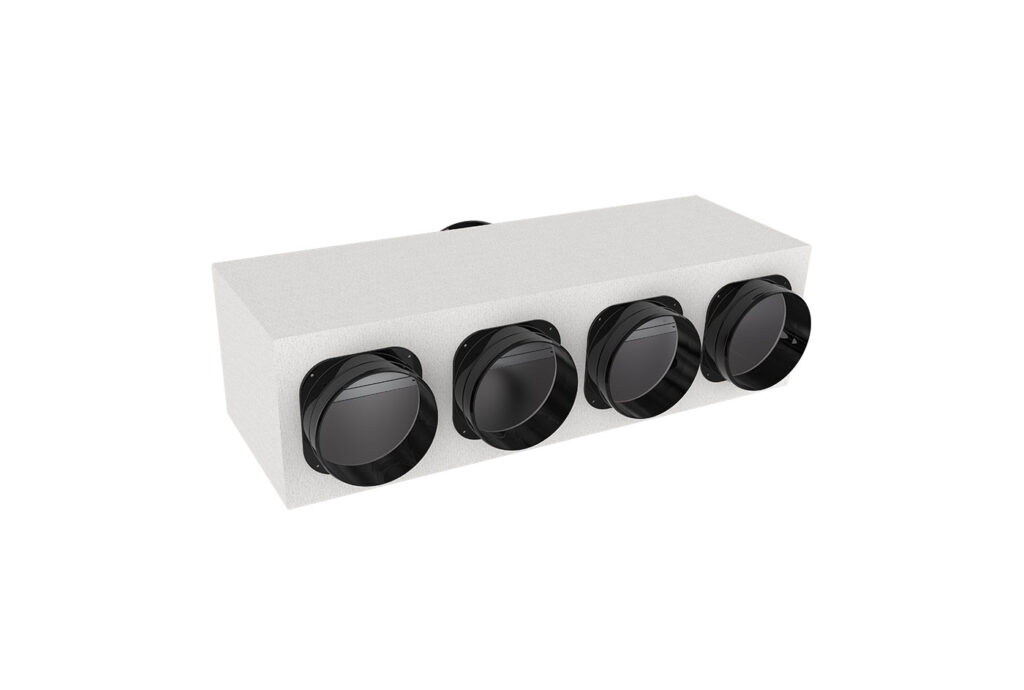

Insulated box in metal sheet for flexible ducted pipe 2 - 3 - 4 - 5 outputs Ø 150

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• External insulation in 3 mm thick polyethylene
• Air inlet collar with double diameter with hose connection Ø 150 – 200
• Outgoing collars as shown in the table
• Complete with brackets for ceiling mounting

Models

Available Models (4)

ACD600001

PLÉNUM FOR FLEXIBLE HOSE WITH 2 OUTLETS, Ø150

A [mm]	380
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	2 - 150

ACD600002

PLÉNUM FOR FLEXIBLE HOSE WITH 3 OUTLETS, Ø150

A [mm]	570
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	3 - 150

ACD600003

PLÉNUM FOR FLEXIBLE HOSE WITH 4 OUTLETS, Ø150

A [mm]	760
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	4 - 150

ACD600004

PLÉNUM FOR FLEXIBLE HOSE WITH 5 OUTLETS, Ø150

A [mm]	950
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	5 - 150
