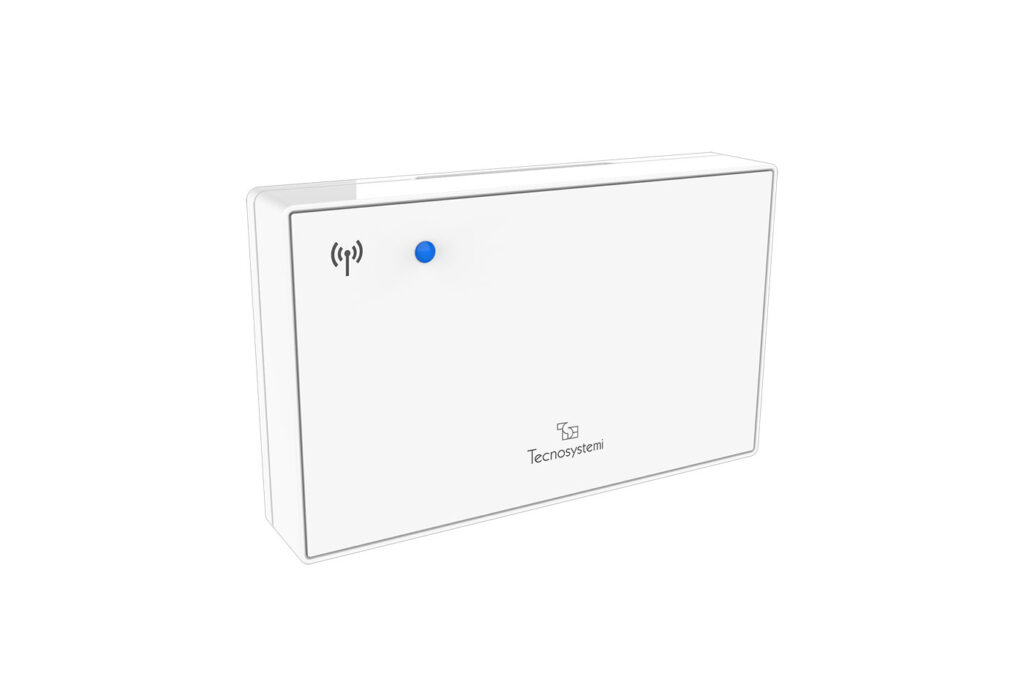

LEM 3X RF Wall-mounted room probe with radio frequency batteries

Galaxy
Temperature regulation and control systems

La sonda ambiente LEM RX RF, è un elemento del sistema proair che installato in ambiente, rileva la temperatura di zona e la soglia di umidità ed invia i valori alla centralina POLARIS.
The LEM RF room probe replaces the system’s chronothermostats with the exception of the master chronothermostat.
The probe configurations to the system and the setting are carried out directly from the “Polaris” control unit, from the master chronothermostat or from the app (if installed).
The flashing of LED allows the user to signal the correct connection with the master programmable thermostat.
The lem room probe is fastened to the wall very quickly.
The probe can be attached to/ detached from the wall at any time with a slight external pressure by means of a supplied coupling template.
Consigliato per installazioni in piccoli edifici residenziali.

TECHNICAL SPECIFICATIONS:

• Power supply battery 2 x 1.5 V type AAA (LR03) supplied
• Battery life 18 months
• 868 MHz RF radio frequency data transmission
• RF signal capacity 25 m max in open field between the chronothermostat and the Polaris 5X” controller
• Temperature sensor
• Moisture sensor
• Wall fastening using template, screws and fixing plugs supplied
• Indicator LED
• Compatibile con centralina Polaris 5X e 6X

FUNCTIONS

• Room temperature sensor
• Moisture sensor
• Humidity control in radiant cooling mode with relay module
• Blue alert LED activates every 60 seconds
• Wall fastening using template, screws and fixing plugs supplied
