Linear diffuser in anti-condensation PVC with damper and central baffle - 2 slots

Project Wind
Air diffusion

Visible linear diffuser in anti-condensate PVC with adjustable calibration damper, central baffle with 2 slots, white.
Diffusers are used in places where the ceiling design has to be assured, such as offices, meeting rooms and hotels, ensuring uniform air diffusion and high thermal induction.
In contrast to aluminium, due to its physical characteristics PVC does not produce condensate; this avoids the formation of fungi, mould and bacteria inside the diffuser and ensures excellent wall insulation.
It is fixed to the plenum, which can be purchased separately, using front screws and mobile C brackets.
The damper is used to control the required amount of air and can be calibrated using a screwdriver.
Housings are obtained from inside the profiles to enable the mounting of adjustable PVC baffles.
By changing the baffle direction it is possible to deliver the air flow according to the place of installation, if necessary obtaining a Coanda effect.

Certifications

TECHNICAL SPECIFICATIONS:

• Made of anti-condensation PVC plastic
• Operating temperature: -30 °C + 60 °C
• Fastening with screws and brackets
• For wall / ceiling installation
• Matte white color
• Galvanized sheet metal plenum coated with closed-cell polyethylene, available for separate purchase
• Built-in calibration damper
• Continuity kit available separately

Models

Available Models (5)

PWD301491

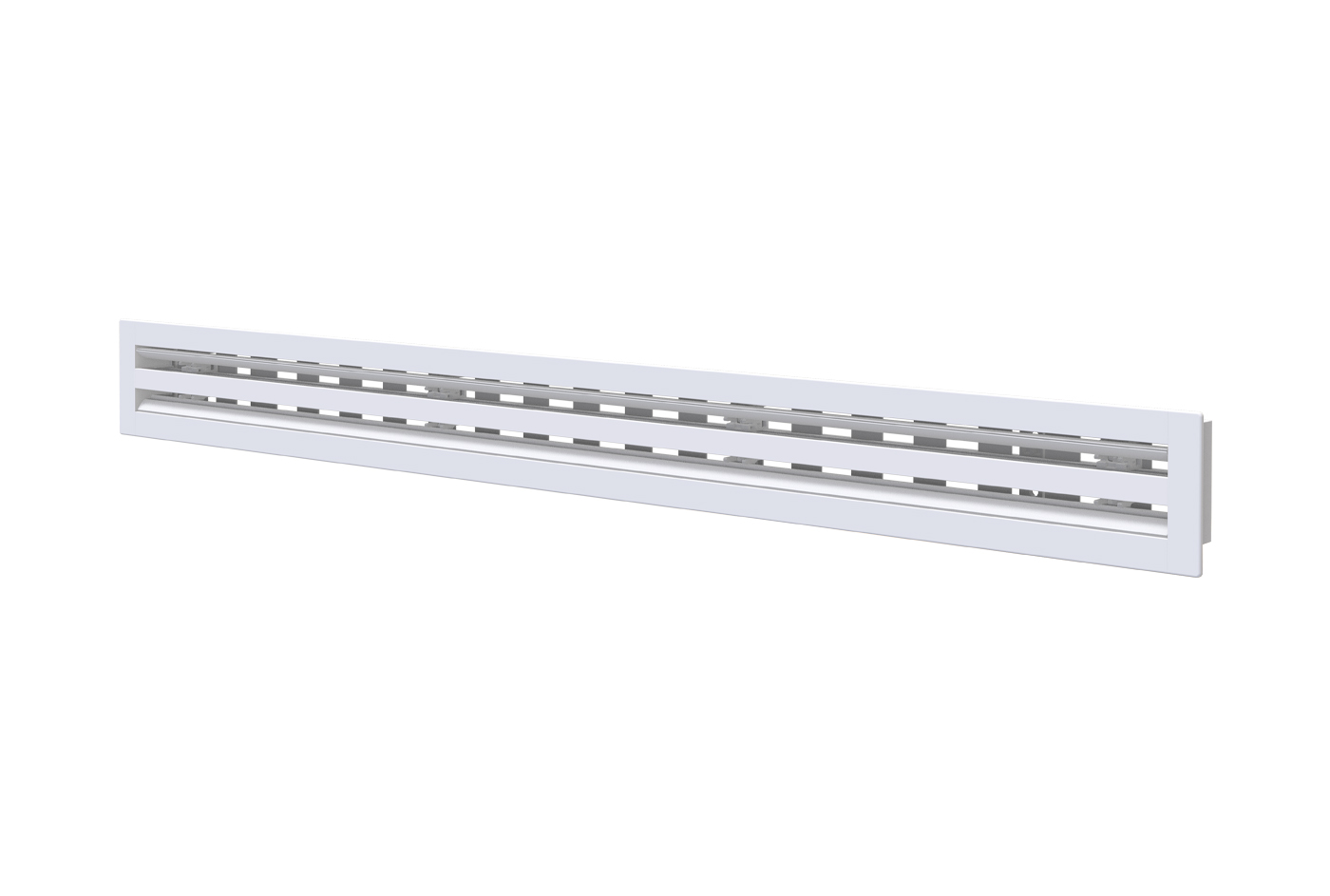

LINEAR DIFFUSER IN ANTI-CONDENSATION PVC WITH DAMPER AND CENTRAL DEFLECTOR L600mm 2 SLOTS WHITE

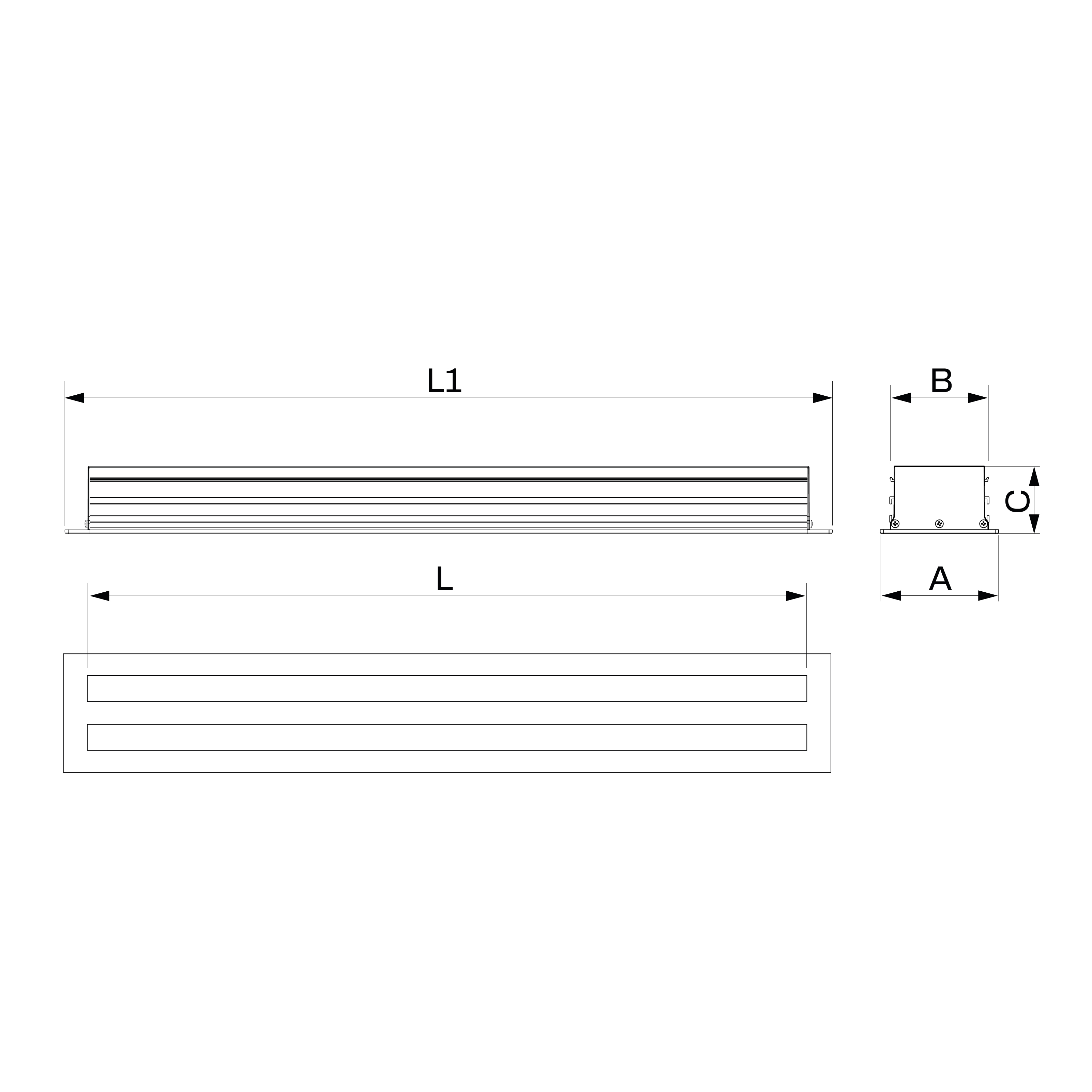

L [mm]	600
L1 [mm]	645
A [mm]	105
B [mm]	88
C [mm]	60

Specification items

SPECIFICATION
Exposed linear anti-condensation PVC diffuser with 2 slots, damper, and central deflector
Exposed linear PVC diffuser for supply and return. Available with 2 white slots.
Patented fastening and joining elements are housed inside the profiles.
Central deflector with adjustable teardrop profile.
Adaptable to the dedicated accessory plenum, complete with screws and C-brackets for installation.
Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301491 L= 600mm for linear diffuser WITH 2 SLOTS white color
Brand Tecnosystemi S.p.A.

PWD301500

LINEAR DIFFUSER IN ANTI-CONDENSATION PVC WITH DAMPER AND CENTRAL DEFLECTOR L800mm 2 SLOTS WHITE

L [mm]	800
L1 [mm]	845
A [mm]	105
B [mm]	88
C [mm]	60

Specification items

SPECIFICATION
Exposed linear anti-condensation PVC diffuser with 2 slots, damper, and central deflector
Exposed linear PVC diffuser for supply and return. Available in white with 2 slots.
Patented fastening and joining elements are housed within the profiles.
Adjustable central deflector with teardrop profile.
Adaptable to the dedicated accessory plenum, complete with screws and C-brackets for installation.
Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301500 L= 800mm for linear diffuser with 2 SLOTS, white
Brand: Tecnosystemi S.p.A.

PWD301509

LINEAR DIFFUSER IN ANTI-CONDENSATION PVC WITH DAMPER AND CENTRAL DEFLECTOR L1000mm 2 SLOTS WHITE

L [mm]	1000
L1 [mm]	1045
A [mm]	105
B [mm]	88
C [mm]	60

Specification items

SPECIFICATIONS
Exposed linear diffuser in anti-condensation PVC with 2 slots, damper and central deflector
Exposed linear diffuser in PVC for supply and return. Available with 2 slots, white color.
Patented fastening and joining elements are housed inside the profiles.
Adjustable central deflector with teardrop profile.
Adaptable to the dedicated accessory plenum, complete with screws and C-brackets for installation.
Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301509 L= 1000mm for linear diffuser WITH 2 SLOTS, white color
Brand Tecnosystemi S.p.A.

PWD301518

LINEAR DIFFUSER IN ANTI-CONDENSATION PVC WITH DAMPER AND CENTRAL DEFLECTOR L1500mm 2 SLOTS WHITE

L [mm]	1500
L1 [mm]	1545
A [mm]	105
B [mm]	88
C [mm]	60

Specification items

SPECIFICATIONS
Exposed linear diffuser in anti-condensation PVC with 2 slots, damper, and central deflector
Exposed linear diffuser in PVC for supply and return. Available with 2 slots, white color.
Patented fastening and joining elements are housed inside the profiles.
Central deflector with adjustable teardrop profile.
Adaptable to the dedicated accessory plenum, complete with screws and C-brackets for installation.
Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301518 L= 1500mm for linear diffuser WITH 2 SLOTS, white color
Brand Tecnosystemi S.p.A.

PWD301527

LINEAR DIFFUSER IN ANTI-CONDENSATION PVC WITH DAMPER AND CENTRAL DEFLECTOR L2000mm 2 SLOTS WHITE

L [mm]	2000
L1 [mm]	2045
A [mm]	105
B [mm]	88
C [mm]	60

Specification items

SPECIFICATIONS
Exposed linear anti-condensation PVC diffuser with 2 slots, damper, and central deflector
Exposed linear PVC diffuser for supply and return. Available with 2 slots, white color.
Patented fastening and joining elements are housed inside the profiles.
Central deflector with adjustable teardrop profile.
Adaptable to the dedicated accessory plenum, complete with fasteners and C-brackets for installation.
Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301527 L= 2000mm for 2-slot linear diffuser, white color
Brand Tecnosystemi S.p.A.
