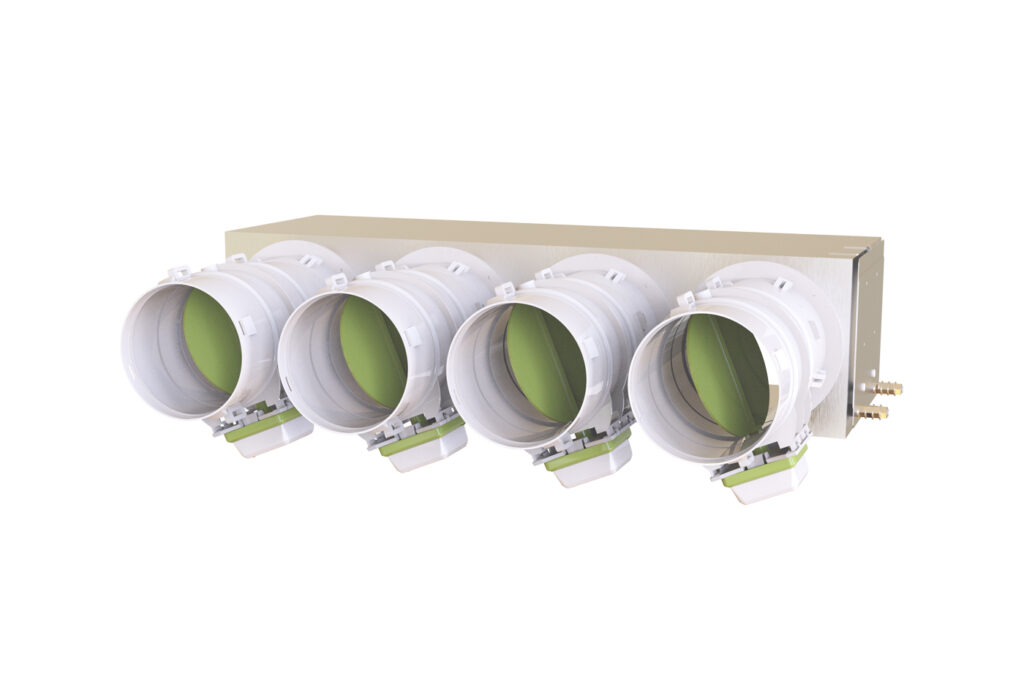

PROAIR PACK RF AMBRA 4L With plenum in insulated metal sheet

Galaxy
Temperature regulation and control systems

The pre-assembled systems PROAIR PACK RF-L are designed to facilitate and speed up the installation of a ducted system.
Simply indicate, when ordering, the model of the plenum or alternatively communicate the size of the plenum and specify the code of the chosen PROAIR PACK system.
The system is supplied complete with Polaris” control unit, chronothermostats and thermostats and a mechanical by-pass kit to be installed on the plenum (complete with fixing ring and counterweight).
The system is supplied complete with programmable thermostats and dampers (Ø 150 or Ø 200) fixed on the insulated plenum.
In order to ensure ease and speed of installation, the PROAIR PACK RF-L system is completely assembled, configured and tested 100% by qualified personnel.
Attention! Check with the manufacturer of the indoor ducted unit whether or not it is necessary to use an appropriate interface for the control of the same (mandatory if the communication protocol is not used). There must always be an inspection hatch to access the control unit and the dampers.

Caratteristiche tecniche

The PROAIR PACK RF AMBRA 4L system consists of:
• 1 insulated delivery plenum for ducted units (specify plenum code when ordering)
• N has 1 “Polaris” control unit with preloaded protocols, app, Alexa and Google Home
• 4 motorised dampers pre-wired to system
• 4 DISCOVERY 3X chronothermostats (white, wall-mounted with batteries), MINI DISCOVERY 3X or MINI LED ASTRA chronothermostats
• 1 mechanical bypass kit to be fastened to plenum (includes fastening ring nut and counterweight)
Customisable on request

Models

Available Models (8)

GAD400383

PROAIR PACK RF AMBRA 4 L - WITH 4 CHRONOTERMOSTATS DISCOVERY 3X BACKLIT - WITH CONTROL UNIT POLARIS 5X - Ø150 mm

GAD400384

PROAIR PACK RF AMBRA 4 L - WITH 4 CHRONOTERMOSTATS DISCOVERY 3X BACKLIT - WITH CONTROL UNIT POLARIS 5X - Ø200 mm

GAD400389

PROAIR PACK RF AMBRA 4 L - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 CHRONOTERMOSTATS MINI DISCOVERY 3X - WITH CONTROL UNIT POLARIS 5X - Ø150 mm

GAD400390

PROAIR PACK RF AMBRA 4 L - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 CHRONOTERMOSTATS MINI DISCOVERY 3X - WITH CONTROL UNIT POLARIS 5X - Ø200 mm

GAD400511

PROAIR PACK RF AMBRA 4 L - 4 THERMOSTATS MINI LED - WITHTROL UNIT POLARIS 5X - 150 mm

GAD400512

PROAIR PACK RF AMBRA 4 L - 4 THERMOSTATS MINI LED - WITHTROL UNIT POLARIS 5X - 200 mm

GAD400420

PROAIR PACK RF AMBRA 4 L - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 PROBES AMBIENTE LEM 3X RF - WITH CONTROL UNIT POLARIS 5X - Ø150mm

GAD400421

PROAIR PACK RF AMBRA 4 L - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 PROBES AMBIENTE LEM 3X RF - WITH CONTROL UNIT POLARIS 5X - Ø200 mm
