Patent

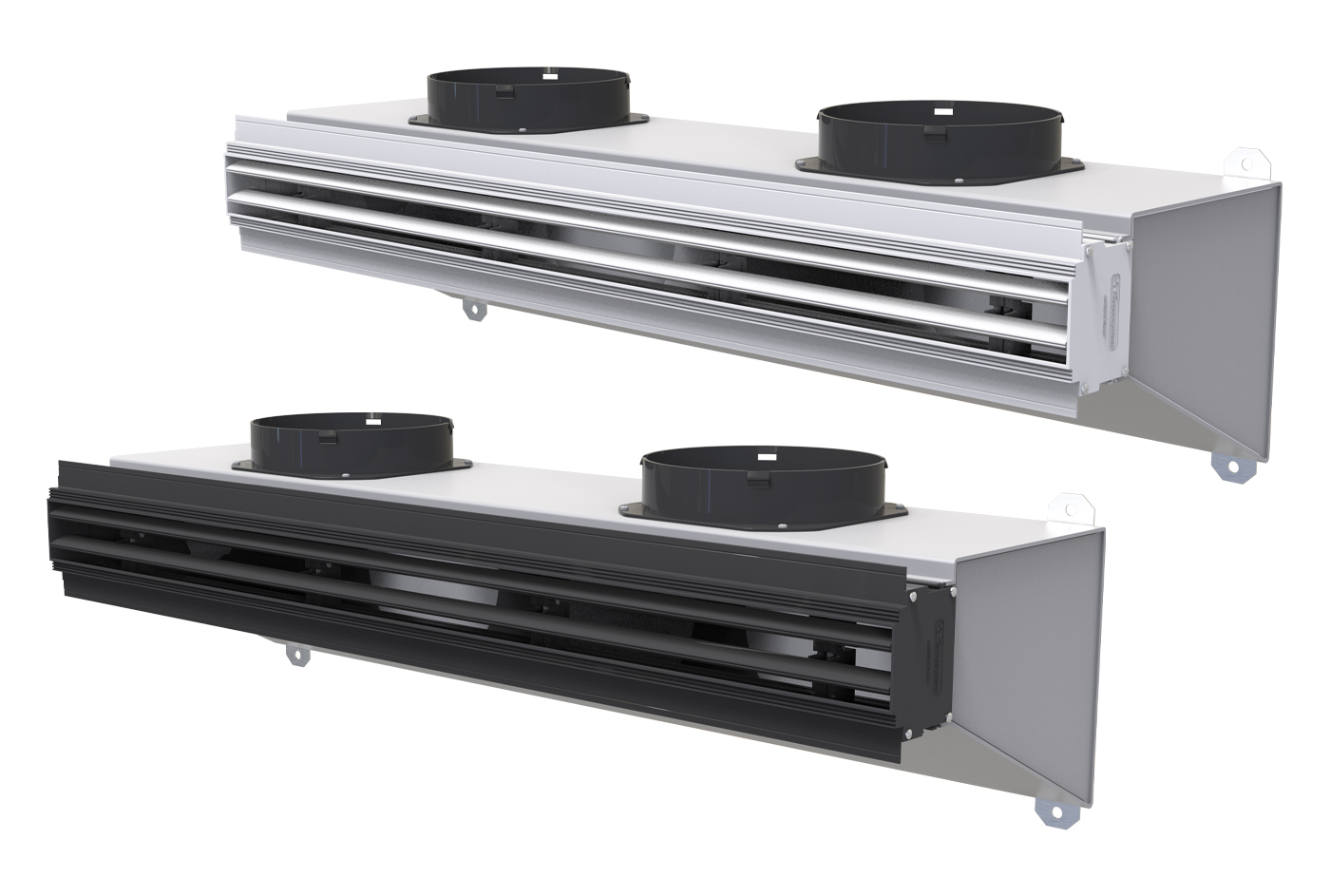

Immagine IMG_PWD301748.jpg
View documentation

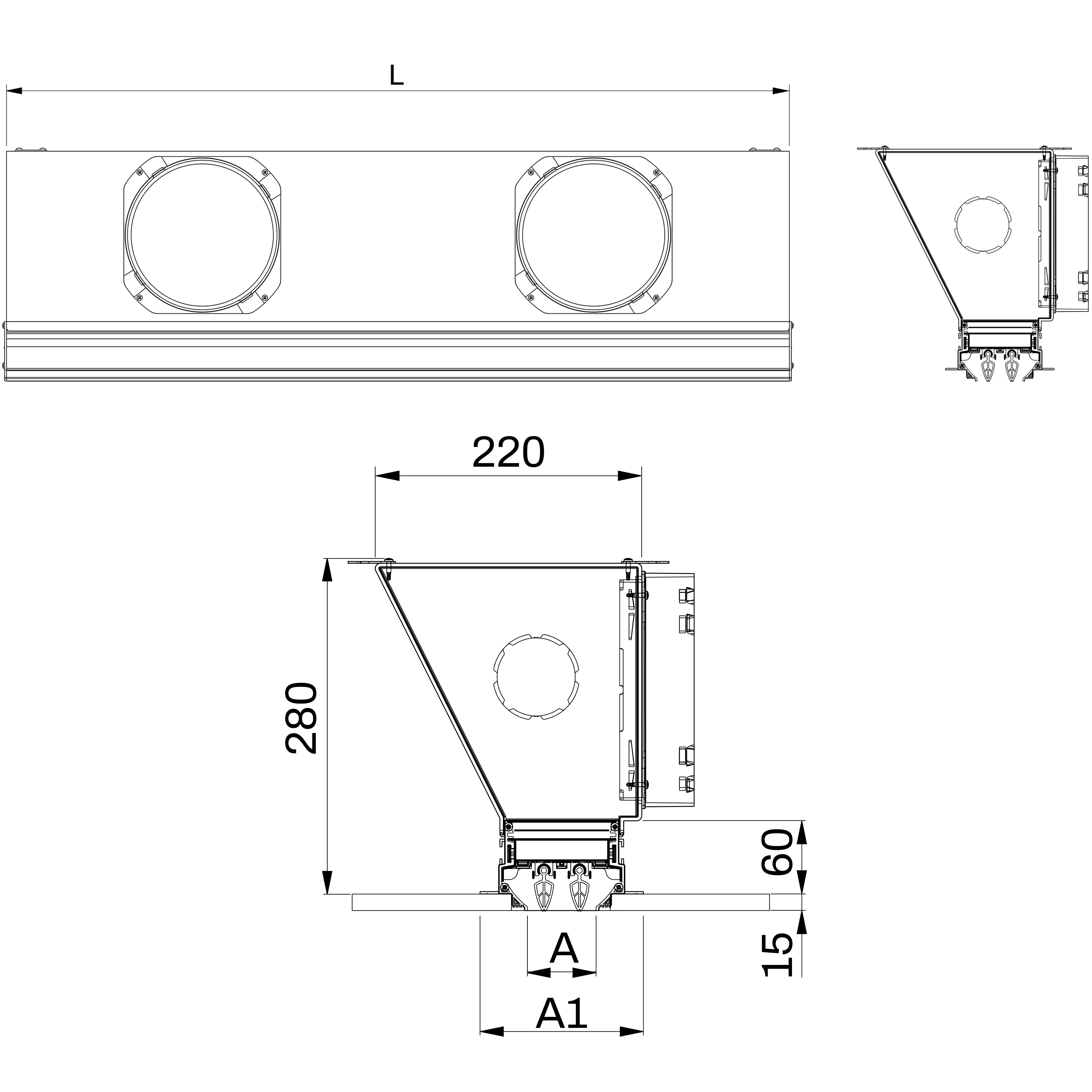

Recessed linear diffuser in anti-condensation PVC plastic with 2 central deflectors, 58 mm slot.

  • Project Wind
  • Air diffusion

Retractable linear diffuser in PVC, in white or black, with 58 mm slot.
Equipped with n. 2 adjustable central deflectors with a symmetrical drop profile fixed via integrated connecting elements.
Complete with plenum in galvanized steel sheet, pre-painted black on the inside, with external insulation in closed-cell polyethylene.
Inlet collars that can be installed on the desired side and pre-cut arrangements for additional ducts and/or for connection to Ø 75 or Ø 90 mm VMC ducts.
Operating temperature: from −30 °C to +60 °C.

TECHNICAL SPECIFICATIONS

• Made of anti-condensation PVC plastic
• Available with 58 mm slot in white or black
• Polyethylene coated galvanized sheet plenum with closed cells (sp.3mm)
• Operating temperature: -30 °C + 60 °C
• Fastening with screws and brackets
• For wall / ceiling installation
• Inlet collars included in the package (not assembled)
• Provisions for additional ducting and for VMC Ø75/90 (ref. ACD600089 – ACD600090)
• Central deflectors to direct airflow

Models

Available Models (20)

PWD301748

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L600mm SLOT 58mm WHITE

PWD301812

INEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L600mm SLOT 58mm BLACK

PWD301749

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L800mm SLOT 58mm WHITE

PWD301813

INEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L800mm SLOT 58mm BLACK

PWD301750

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L1000mm SLOT 58mm WHITE

PWD301814

INEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L1000mm SLOT 58mm BLACK

PWD301751

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L1200mm SLOT 58mm WHITE

PWD301815

INEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L1200mm SLOT 58mm BLACK

PWD301752

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L2000mm SLOT 58mm WHITE

PWD301816

LINEAR RETTRACTING DIFFUSER IN ANTI-CONDENSATION PVC, INSULATED PLENUM AND 2 CENTRAL DEFLECTORS L2000mm SLOT 58mm BLACK

PWD301822

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L600mm SLOT 58mm WHITE

PWD301832

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L600mm SLOT 58mm BLACK

PWD301823

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L800mm SLOT 58mm WHITE

PWD301833

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L800mm SLOT 58mm BLACK

PWD301824

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L1000mm SLOT 58mm WHITE

PWD301834

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L1000mm SLOT 58mm BLACK

PWD301825

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L1200mm SLOT 58mm WHITE

PWD301835

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L1200mm SLOT 58mm BLACK

PWD301826

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L2000mm SLOT 58mm WHITE

PWD301836

LINEAR RETRACTING DIFFUSER IN ANTI-CONDENSATION PVC WITH 2 CENTRAL DEFLECTORS L2000mm SLOT 58mm BLACK

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_PWD301748.jpg

  • Technical Data Sheet

    it en fr de
