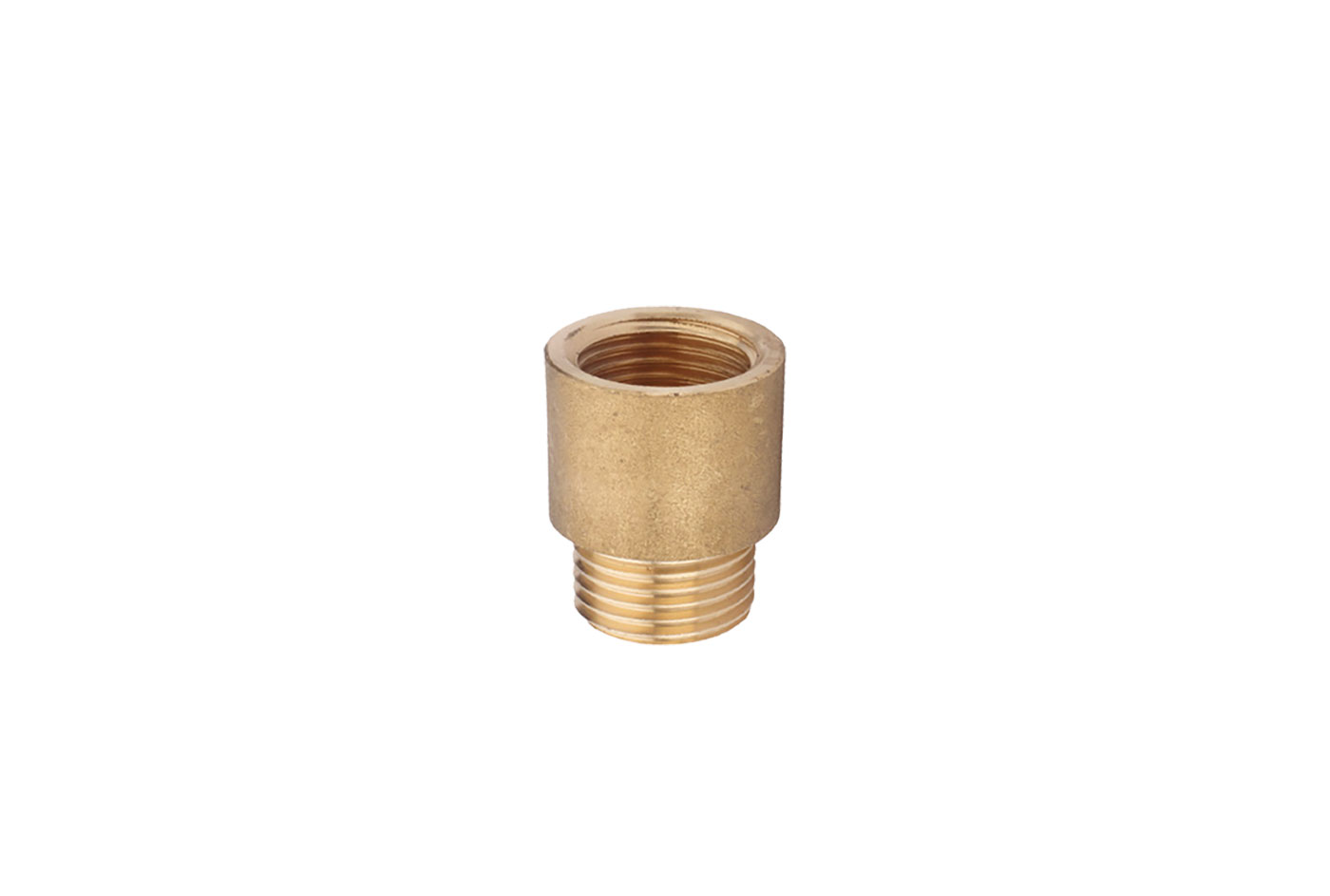

Round extension M / F

Showgas
Maintenance and cleaning of air conditioning systems

TECHNICAL SPECIFICATIONS:

• Made of brass
• Application in hydraulics
• Gas thread
• Max operating temperature +130°C

Models

Available Models (9)

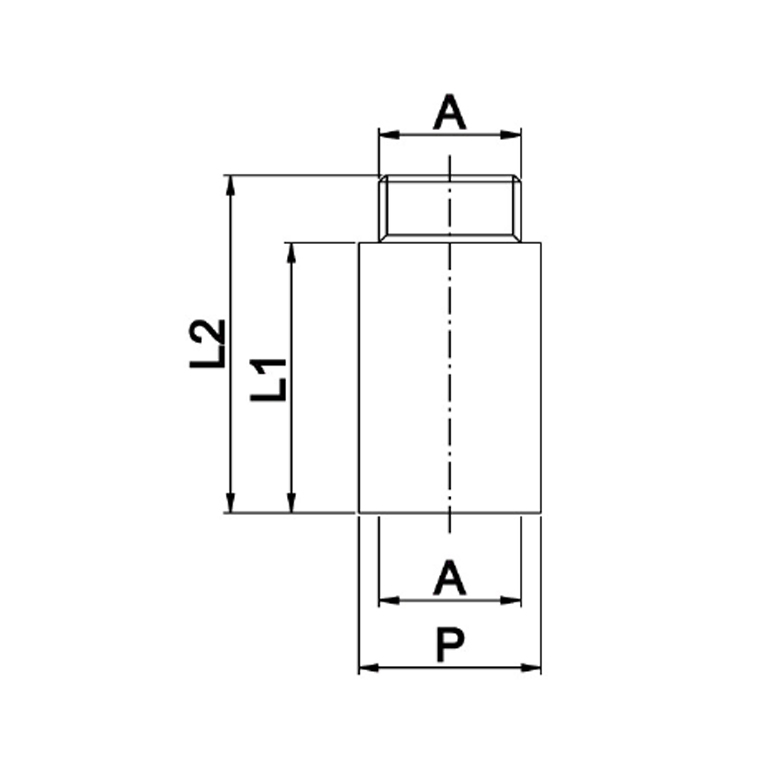

26003410

ROUND EXT. 1/2" L. 15

A	1/2”
L1 [mm]	15
L2 [mm]	25
P [mm]	27

26003420

ROUND EXTENSION 1/2" L.20

A	1/2”
L1 [mm]	20
L2 [mm]	30
P [mm]	27

26003440

ROUND EXT. 1/2" L. 30

A	1/2”
L1 [mm]	30
L2 [mm]	40
P [mm]	27

26003460

ROUND EXT. 1/2" L. 50

A	1/2”
L1 [mm]	50
L2 [mm]	60
P [mm]	27

26003480

ROUND EXT. 1/2" L. 80

A	1/2”
L1 [mm]	80
L2 [mm]	90
P [mm]	27

26003490

A	1/2”
L1 [mm]	100
L2 [mm]	110
P [mm]	27

26003510

ROUND EXT. 3/4" L. 15

A	3/4”
L1 [mm]	15
L2 [mm]	--
P [mm]	--

26003530

ROUND EXTENSION 3/4" L.30

A	3/4”
L1 [mm]	30
L2 [mm]	--
P [mm]	--

26003550

ROUND EXT. 3/4" L. 50

A	3/4”
L1 [mm]	50
L2 [mm]	--
P [mm]	--
