Safety and check valve without lever for fluids
Showgas
TECHNICAL SPECIFICATIONS:
• Body in CW617N brass
• Stainless steel springs AISI 302
• Nominal pressure from 6 to 10 bar
• Range tolerance ±5%
• Operating temperature: 0°C ÷ +95°C
• Efflux coefficient 0.05
• Inlet / outlet connections G 1/2″ M – G 1/2″ F
• Suitable for use with Glycol and Water
Models
Available Models (1)
SGC500011
WP142 SAFETY AND NON-RETURN VALVE FOR FLUIDS W/O DRAIN LEVER

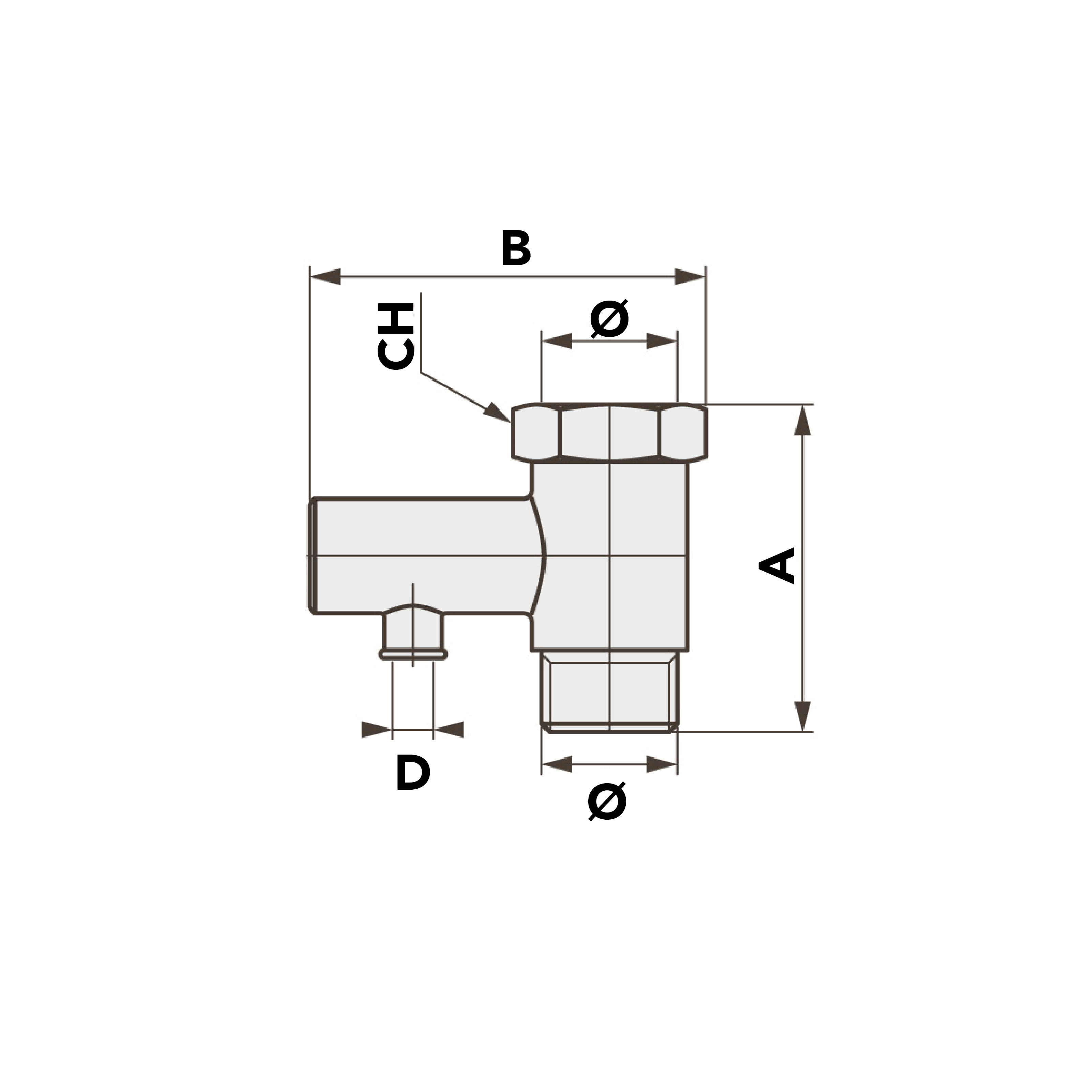

| A [mm] | 41 |
|---|---|
| B [mm] | 52 |
| CH [mm] | 25 |
| D [mm] | 5 |
| Ø | 1/2” |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
