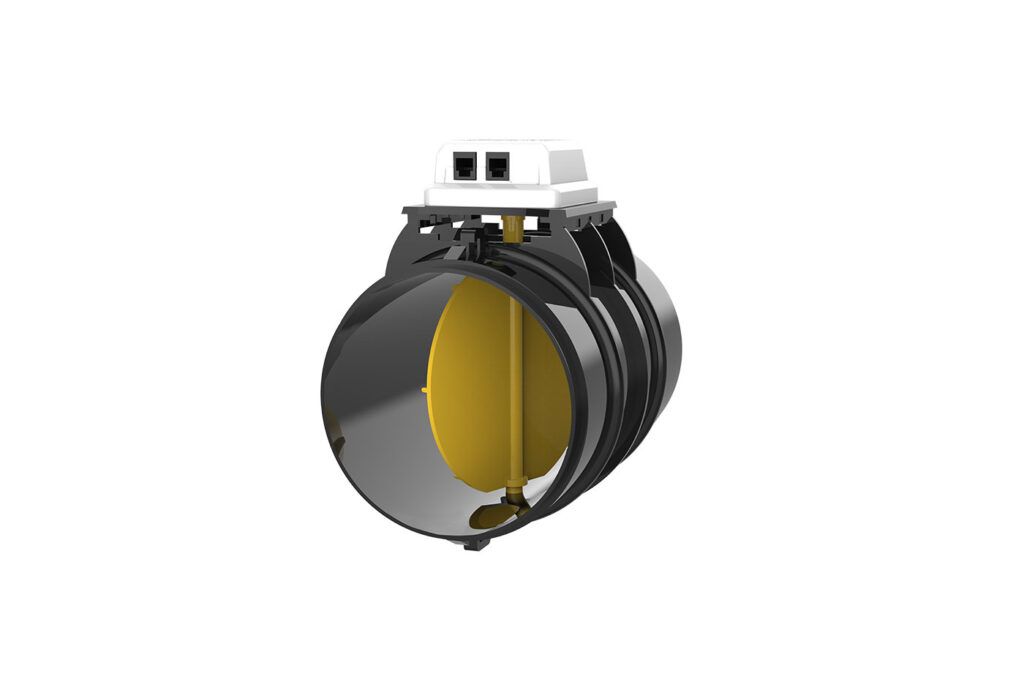

SIRIO 2.0 POINT Motorised butterfly damper in plastic material

Galaxy
Temperature regulation and control systems

The “Sirio 2.0 Point” system allows the management of the temperature or air flow for each room, without the aid of any control unit or a particular command.
The motorised circular damper integrates perfectly with new and existing ducted systems in which it is necessary to manage only part of the ducted system: this solution does not require the installation of any system that manages the switching on/off of the internal unit or the movement of the motorised Bypass.
It therefore allows management of the air flow in the individual rooms without the aid of an electronic control unit for operation.
It is equipped with auxiliary ON/OFF input and output contacts.
It can be controlled by thermostats, ON/OFF switches or integration with home automation system by means of clean contact.

TECHNICAL SPECIFICATIONS:

• ABS plastic
• Auxiliary IN/OUT contact
• Power supply: 230 V
• Power supply included (“MASTER” version)
• “SLAVE” version without power supply
• Opening butterfly ON / OFF
• Operating temperature 0°C A +70°C
• Max conveyance length 25 m
• A maximum of 8 dampers can be installed in ducting
• SIRIO 2.0 PACK system installed on plenum available on request
