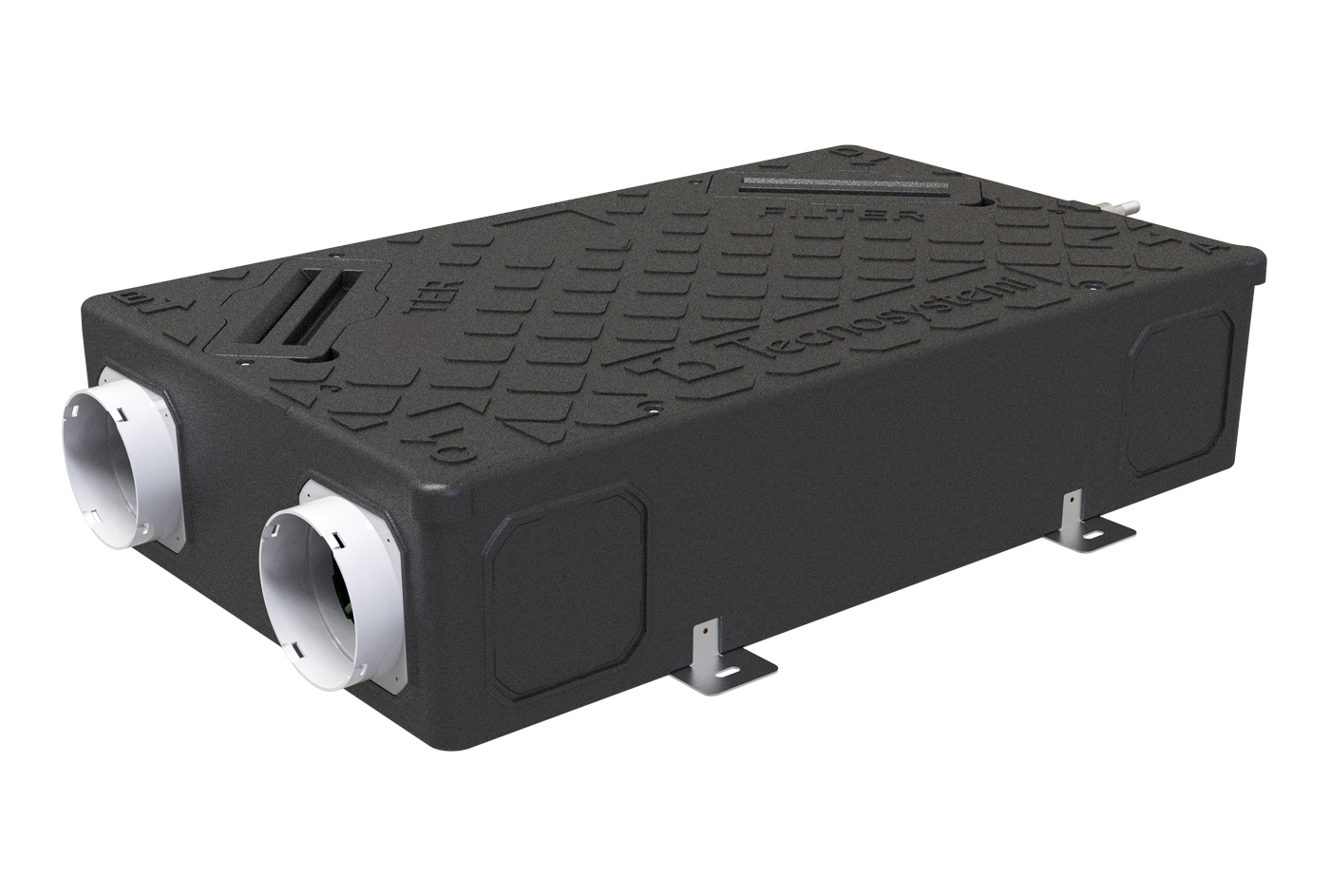

TS-HRVU Ducted ceiling-mounted sensible heat recovery unit

Apply.co
Air treatment - MVHR

HRVU is a heat recovery ventilation unit.
Designed for air exchange with heat recovery, thanks to the backflow sensible heat exchanger.
Ideal for horizontal installation in a false ceiling or vertical wall mounting, and allow controlled mechanical ventilation of indoor environments in residential settings.

Energy Class

TECHNICAL SPECIFICATIONS:

• Ceiling and wall installation
• ISO ePM10 50% on the suction ducts
• RS485 communication port with modbus protocol*
• Entire casing made of EPP, providing thermal and acoustic insulation
• High-efficiency sensible heat exchanger, made of polystyrene
• Brushless EC motors
• Reversible air duct connections, adjustable by 90° via interchangeable closing plugs
• Condensate drain
• Free cooling / free heating electronic bypass*
• 4 integrated temperature sensors*
• Antifreeze feature*
• Accessori opzionali: controllo per VMC display con programmazione settimanale 230V*, sensore CO₂*, sensore umidità* e dispositivo di comunicazione MODBUS* e placca chiusura per controlli BOX503, filtro aria aggiuntivo a richiesta ISO ePM1 50%
* only 180-250-320 models

Models

Available Models (10)

ACD200068

HEAT RECOVERY UNIT HRVU TS120 0/10V

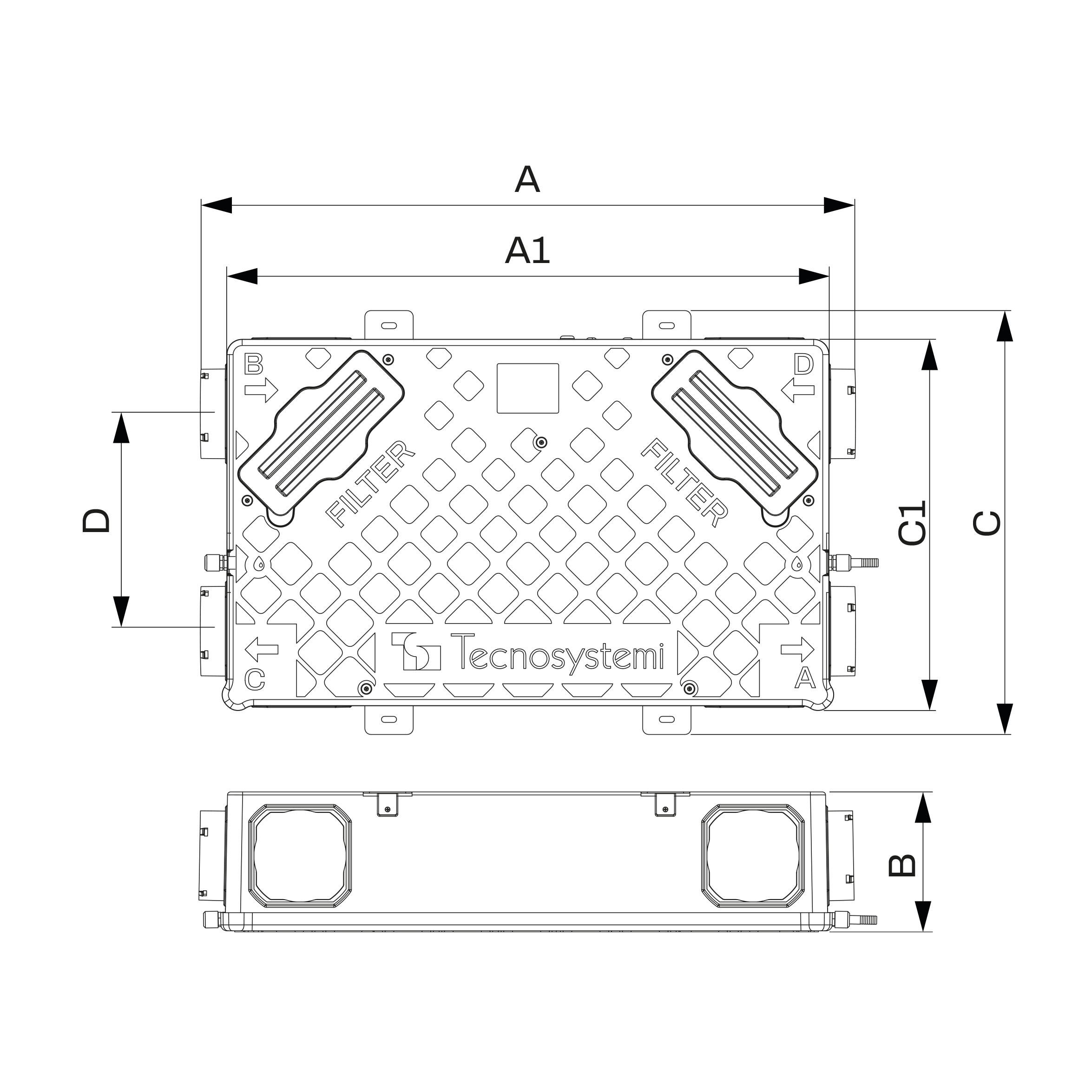

A [mm]	1100
A1 [mm]	990
B [mm]	230
C [mm]	700
C1 [mm]	610
D [mm]	360

Specification items

SPECIFICATIONS
Code. ACD200068
VENTILATION UNIT WITH HEAT RECOVERY HRVU TS120 0/10V
Ventilation unit designed for ceiling or wall installation, with sensible cross-flow countercurrent heat exchanger.

PERFORMANCE DATA:
-Airflow 120 m3/h at Static Pressure 100 Pa;
-Energy class (SEC temperate climate) A;
-Thermal efficiency 88.5 %;
-Minimum outdoor air temperature -15 °C;
-Sound Power LWA 52.3 dB(A);
-Sound Pressure LpA (2m) 38 dB(A);

CONSTRUCTION FEATURES:
-High-efficiency HRC1a heat exchanger made of polystyrene;
-Entire self-supporting casing in expanded polypropylene (EPP) with thermo-acoustic insulating function and internal supports in galvanized sheet metal;
-Centrifugal fans, for supply and extract air, with Brushless EC motor;
-4 integrated temperature probes for air temperature detection;
-Reversible and 90° rotatable air connections via interchangeable closing caps;
-ISO ePM10 50% filter on ambient extract and outdoor air intake channels;
-Other filter types with different filtration levels available on request;
-Air connections Ø 150 mm;
-½” threaded or hose barb condensate drain
-Dimensions (wxhxd): 1100x230x610 mm
-Weight: 14 Kg

CONTROLS
Remote control: 0-10V Controller
BMS Control: 0-10 V

ELECTRICAL DATA
-Operating temperature: -10°C / +40°C
-Operating relative humidity at ambient temperature of 25°C: < 85 Rh%
-Electrical equipment insulation class: 1
-IP rating: IP22
-Maximum power consumption: 55 W
-Maximum current consumption: 0.5 A
-Power supply: 230 V – 50 Hz

Model HRVU TS120 0/10V
Brand Tecnosystemi S.p.A.

ACD200067

HEAT RECOVERY UNIT HRVU TS180 RF

A [mm]	1100
A1 [mm]	990
B [mm]	230
C [mm]	700
C1 [mm]	610
D [mm]	360

Specification items

SPECIFICATIONS
Code. ACD200067
VENTILATION UNIT WITH HEAT RECOVERY HRVU TS180 RF*
Ventilation unit designed for ceiling or wall installation, with counter-flow cross-flow sensible heat exchanger.

PERFORMANCE DATA:
-Airflow 180 m3/h with Static Pressure 100 Pa;
-Energy class (SEC temperate climate) A;
-Thermal efficiency 87 %;
-Mechanical thermal bypass with electronic actuation;
-Minimum outdoor air temperature -15 °C;
-Anti-freeze function via airflow imbalance;
-Sound Power LWA 56.6 dB(A);
-Sound Pressure LpA (2m) 43 dB(A);

CONSTRUCTION FEATURES:
-High-efficiency HRC1a heat exchanger made of polystyrene;
-Entire casing in self-supporting expanded polypropylene (EPP) with thermo-acoustic insulation function and internal supports in galvanized sheet metal;
-Centrifugal fans, for supply and extract air, with Brushless EC motor;
-Automatic electronic bypass for free cooling / free heating;
-4 integrated temperature probes for air temperature sensing;
-Reversible air connections, orientable by 90° via interchangeable blanking plugs;
-ISO ePM10 50% filter on room extract and outdoor air intake ducts;
-Other filter types with different filtration levels available upon request;
-Duct connections Ø 150 mm;
-½” threaded or hose barb condensate drain;
-Dimensions (LxHxD): 1100x230x610 mm;
-Weight: 14 Kg;

CONTROLS
Remote control: 4-button digital control
Weekly programming: Control display available upon request / included* code ACD200069
CO2 SENSOR: Control display available upon request / included* code ACD200069
HUMIDITY SENSOR: Control display available upon request / included* code ACD200069
BMS Control: MODBUS – RS485 RTU

ELECTRICAL DATA
-Operating temperature: -10°C / +40°C
-Operating relative humidity at ambient temperature of 25°C: < 85 Rh%
-Electrical equipment insulation class: 1
-Protection rating: IP22
-Maximum power consumption: 90 W
-Maximum current consumption: 0.6 A
-Power supply: 230 V – 50 Hz

Model HRVU TS180 RF*
Brand Tecnosystemi S.p.A.
*Note: The RF version comes with the standard control. Matching accessories are available upon request.

ACD200066

HEAT RECOVERY UNIT HRVU TS250 RF

A [mm]	1100
A1 [mm]	990
B [mm]	230
C [mm]	700
C1 [mm]	610
D [mm]	360

Specification items

SPECIFICATIONS
Cod. ACD200066
VENTILATION UNIT WITH HEAT RECOVERY HRVU TS250 RF*
Ventilation unit designed for ceiling or wall installation, with a cross-flow counter-current sensible heat exchanger.

PERFORMANCE DATA:
-Airflow 250 m3/h with Static Pressure 100 Pa;
-Energy class (SEC temperate climate) A;
-Thermal efficiency 85.8 %;
-Electronically controlled mechanical thermal by-pass;
-Minimum outdoor air temperature -15 °C;
-Antifreeze function via airflow imbalance;
-Sound Power LWA 61.3 dB(A);
-Sound Pressure LpA (2m) 47 dB(A);

CONSTRUCTION FEATURES:
-High-efficiency HRC1a heat exchanger made of polystyrene;
-Entire casing made of self-supporting expanded polypropylene (EPP) with thermo-acoustic insulating function and internal galvanized sheet metal supports;
-Centrifugal fans, for supply and extract air, with Brushless EC motor;
-Automatic electronic by-pass for free cooling / free heating;
-4 integrated temperature probes for air temperature detection;
-Reversible and 90° rotatable air connections via interchangeable blanking plugs;
-ISO ePM10 50% filter on room extract and outdoor air intake ducts;
-Other filter types with different filtration levels available upon request;
-Air connections Ø 150 mm;
-Threaded condensate drain ½” or hose barb;
-Dimensions (wxhxd): 1100x230x610 mm;
-Weight: 14 Kg;

CONTROLS
Remote control: 4-button digital control
Weekly programming: Control display available upon request / included* cod. ACD200069
CO2 SENSOR: Control display available upon request / included* cod. ACD200069
HUMIDITY SENSOR: Control display available upon request / included* cod. ACD200069
BMS Control: MODBUS – RS485 RTU

ELECTRICAL DATA
-Operating temperature: -10°C / +40°C
-Operating relative humidity at ambient temperature of 25°C: < 85 Rh%
-Electrical equipment insulation class: 1
-Protection degree: IP22
-Maximum power consumption: 160 W
-Maximum current consumption: 0.8 A
-Power supply: 230 V – 50 Hz

Model HRVU TS250 RF*
Brand Tecnosystemi S.p.A.
*Note: the RF version comes with the standard control. Matching accessories are available upon request.

ACD200075

HEAT RECOVERY UNIT HRVU TS320RF

A [mm]	1100
A1 [mm]	990
B [mm]	230
C [mm]	700
C1 [mm]	610
D [mm]	360

Specification items

SPECIFICATIONS
Code. ACD200075
HEAT RECOVERY VENTILATION UNIT HRVU TS320 RF*
Ventilation unit designed for ceiling or wall installation, with counter-flow sensible heat exchanger.

PERFORMANCE DATA:
-Airflow 280 m3/h at Static Pressure 100 Pa;
-Energy class (SEC temperate climate) A;
-Thermal efficiency 85.2 %;
-Mechanical thermal bypass, electronically actuated;
-Minimum outdoor air temperature -15 °C;
-Frost protection function by airflow imbalance;
-Sound Power LWA 63.4 dB(A);
-Sound Pressure LpA (2m) 49 dB(A);

CONSTRUCTION FEATURES:
-High-efficiency HRC1a heat exchanger made of polystyrene;
-Entire casing in self-supporting expanded polypropylene (EPP) with thermo-acoustic insulation properties and internal supports in galvanized sheet metal;
-Centrifugal fans, for supply and exhaust air, with Brushless EC motor;
-Automatic electronic bypass for free cooling / free heating;
-4 integrated temperature probes for air temperature detection;
-Reversible air connections, rotatable by 90° via interchangeable blanking plugs;
-ISO ePM10 50% filter on room exhaust and outdoor air intake channels;
-Other filter types with different filtration levels available upon request;
-Air connections Ø 150 mm;
-Threaded ½” condensate drain or hose barb;
-Dimensions (wxhxd): 1100x230x610 mm;
-Weight: 14 Kg;

CONTROLS
Remote control: 4-button digital control
Weekly programming: Control display available upon request / included* code. ACD200069
CO2 SENSOR: Control display available upon request / included* code. ACD200069
HUMIDITY SENSOR: Control display available upon request / included* code. ACD200069
BMS Control: MODBUS – RS485 RTU

ELECTRICAL DATA
-Operating temperature: -10°C / +40°C
-Operating relative humidity at ambient temperature of 25°C: < 85 Rh%
-Electrical equipment insulation class: 1
-Protection degree: IP22
-Maximum power consumption: 200 W
-Maximum current consumption: 0.9 A
-Power supply: 230 V – 50 Hz

Model HRVU TS320 RF*
Brand Tecnosystemi S.p.A.
*Note: the RF version comes with the standard control. Matching accessories are available upon request.
