AIRBOX Plenum in PS plastic for MVHR

Apply.co
Air treatment - MVHR

The new PS Plastic Plenum for MVHR is the ideal solution for an efficient controlled mechanical ventilation system (MVHR) in your home or office.
Airbox is designed to be compatible with a wide range of controlled mechanical ventilation units, allowing easy installation and seamless integration into your existing ventilation system.
Its compact shape and ergonomic design make it suitable for different types of environments, both residential and commercial.
It is possible to connect the dedicated tube to the MVHR in the rear, upper or lateral position.
Includes adjustment dampers and a wide range of accessories for quick and easy installation.
Complete the kit by choosing the aesthetic grille made of white ABS, with the option to select among the models: Gemini – Virgo – Aries – Taurus.

TECHNICAL SPECIFICATIONS:

• Plenum made of PS plastic (polystyrene)
• Fixing can be performed on both plasterboard and masonry with a minimum depth of 100 mm up to 150 mm
• Fixing on plasterboard by self-tapping screws on the 4 side fins
• With built-in bubble
• Possibility for spirit level installation work site cover or inside Airbox Box
• Protective cover plaster complete with extraction handle
• No. 4 metal brackets 80 x 80 for rear fixing included
• Sleeves complete with calibration damper with graduated adjustment by screwdriver
• Complete hose clamps
• Possibility to break side flaps for wall insertion
• Option to choose from up to 4 models of finishing grilles in white ABS plastic
• Possibility of up to 5 inlets for Ø 75 and Ø 90 sleeves

Models

Available Models (6)

ACD600088

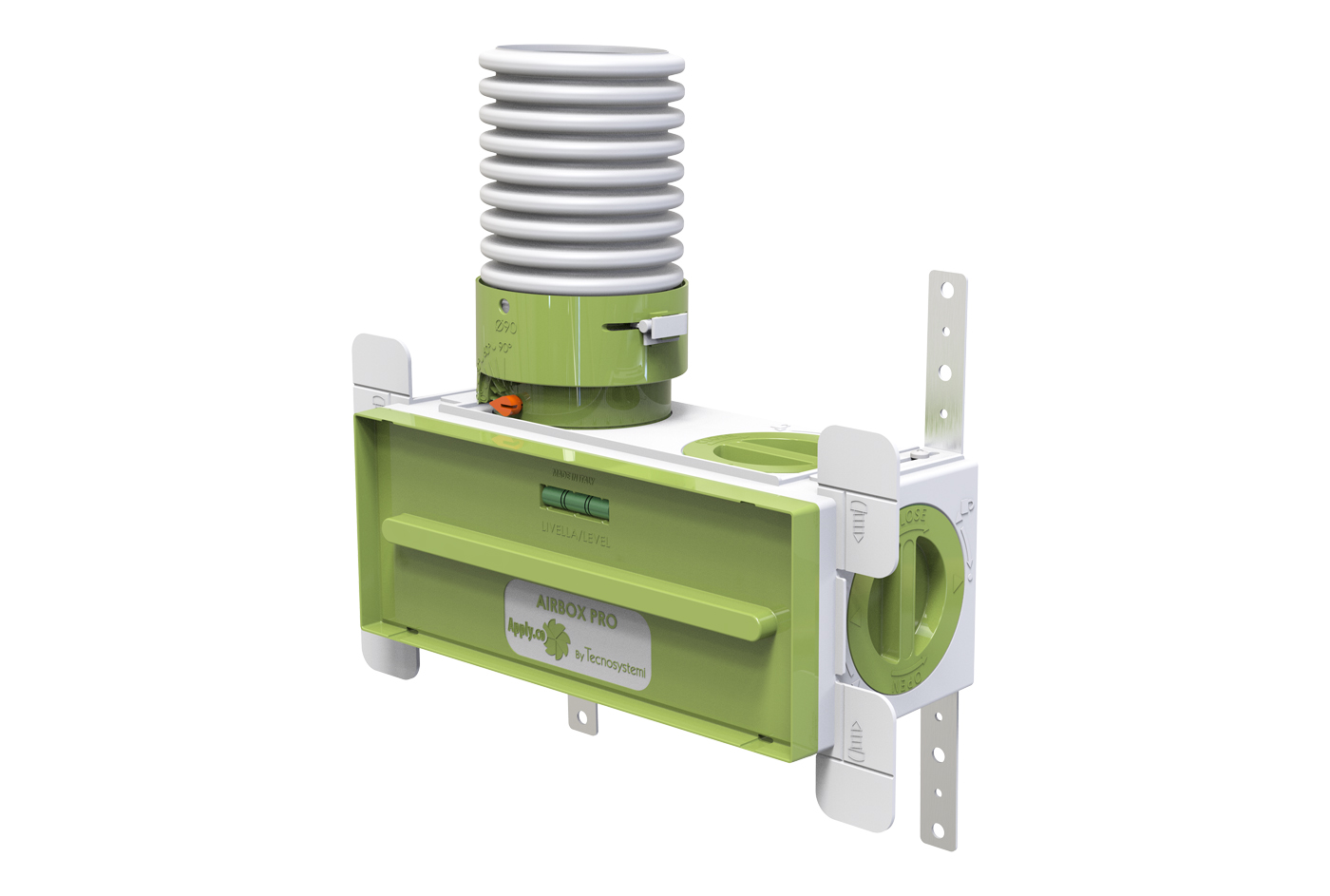

PLÉNUM IN POLYSTYRE WITH SLEEVE FOR PIPE Ø75 - "AIRBOX PRO"

Specification items

SPECIFICATIONS
code ACD600088
AIRBOX Plenum in PS plastic for Ø75 corrugated pipe for VMC
PS plastic (polystyrene) plenum for VMC system, equipped with pre-arranged connections that allow connecting: -1 spigot on side wall; -2 spigots on rear wall; -2 spigots on bottom/top wall. The spigot is complete with pipe retainer and adjustable balancing damper. Plaster protection cover, complete with removal handle. Fixing to plasterboard with self-tapping screws is simplified by the presence of side tabs. These can be removed in case of installation on masonry.
Can be installed on wall or ceiling, for supply or return of ambient air.
Including: – n. 1 Ø75 diameter spigot – n. 1 Ø75 diameter gasket – n. 1 plenum cover with spirit level – n. 1 telescopic bracket kit (4 brackets + 4 plaster screws) – n. 4 caps. Additionally, if needed: Ø75 pipe spigot kit (5 pcs.) code ACD600089 – G2 filter kit (5 pcs.) Code ACC600093.
To complete the system, aesthetic grilles are available L. 297 x H. 135 in white RAL 9016, model: -Gemini code ACC600089 -Virgo code ACC600090 -Aries code ACC600091 -Taurus code ACC600092.
Minimum support depth 98.5 mm; minimum support lining depth 10 mm.
Frame opening dimensions: height 105 mm; width 265 mm.
Ø75 spigot length 56 mm

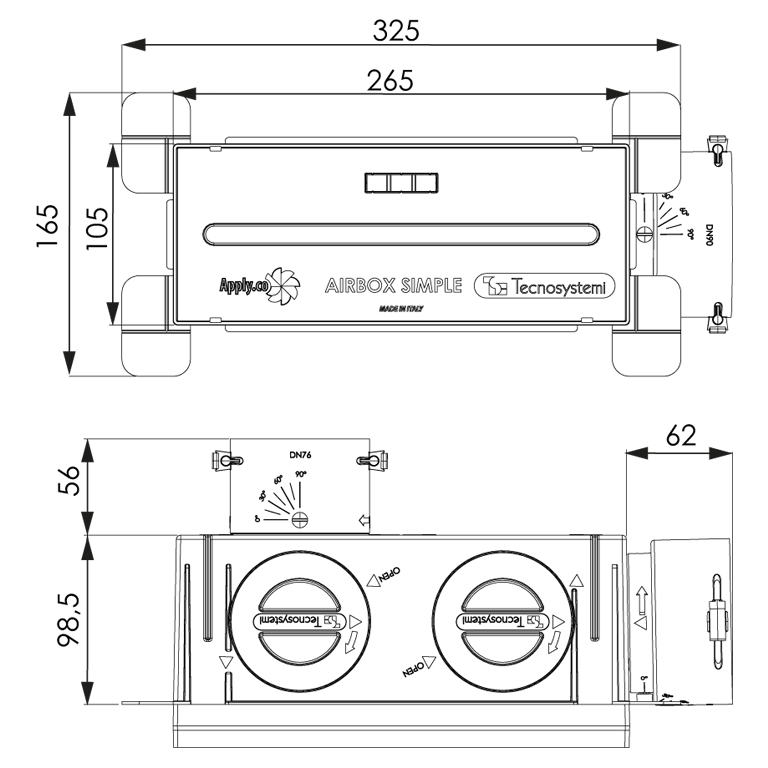

Front plenum dimensions with tabs (wxh): 325×165 mm
Plenum dimensions without spigots and tabs (wxhxd): 265x105x98.5 mm

ACD600092

PLÉNUM IN POLYSTYRE WITH SLEEVE FOR PIPE Ø90 - "AIRBOX PRO"

Specification items

SPECIFICATION
Cod. ACD600092
AIRBOX Plenum in PS plastic for Ø90 corrugated pipe for VMC
PS plastic (polystyrene) plenum for VMC system, equipped with connection pre-arrangements that allow connecting: -1 spigot on the side wall; -2 spigots on the rear wall; -2 spigots on the bottom/top wall. The spigot is complete with a pipe stop and adjustable balancing damper. Plaster protection cover, complete with removal handle. Fixing on plasterboard with self-tapping screws is simplified by the presence of side wings. These can be removed in case of installation on masonry.
Installable on wall or ceiling, for supply or extract ambient air.
Including: – n. 1 spigot Ø90 diameter – n. 1 gasket Ø90 diameter – n. 1 plenum cover with level bubble – n. 1 telescopic bracket kit (4 brackets + 4 plaster screws) – n. 4 caps. Optionally, also available: spigot kit for Ø90 pipe (5 pcs.) cod. ACD600090 – G2 filter kit (5 pcs.) Cod. ACC600093.
To complement, the following aesthetic grilles L. 297 x H. 135 in RAL 9016 white color are available, model: -Gemini cod. ACC600089 -Virgo cod. ACC600090 -Aries cod. ACC600091 -Taurus cod. ACC600092.
Minimum support depth 98.5 mm; minimum support cladding depth 10 mm.
Frame opening dimension: height 105 mm; width 265 mm.
Spigot Ø75 length 56 mm
Front plenum dimensions with wings (lxh): 325×165 mm
Plenum dimensions without spigots and wings (lxhxp): 265x105x98.5 mm
