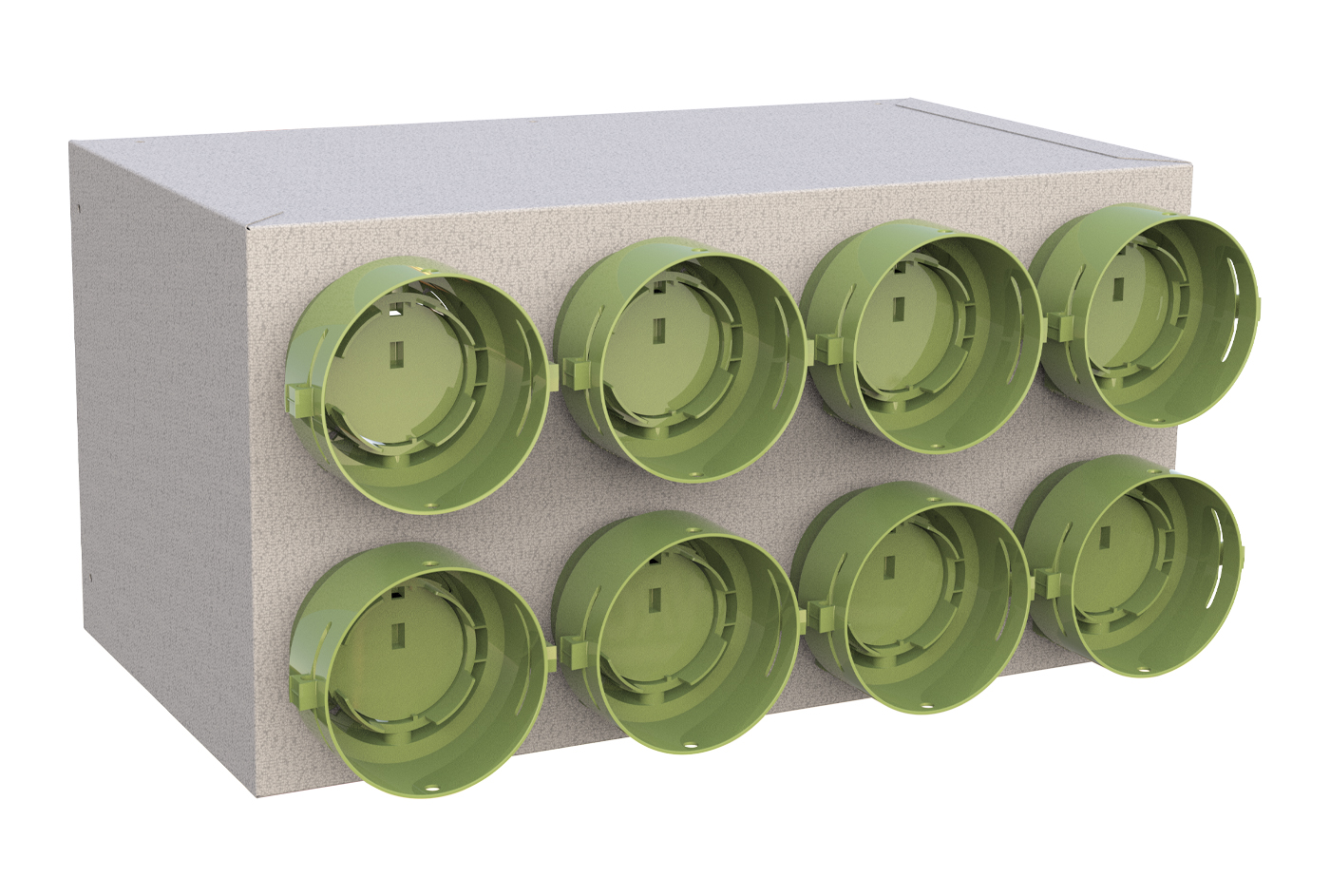

Insulated distribution plenum for MVHR for flexible ducted hose 4-6-8-10-12 outputs Ø 90 with sleeves complete with calibration damper with adjustment

  • Apply.co
  • Air treatment - MVHR

Distribution plenum for MVHR made of galvanised metal sheet and insulated externally with polyethylene (thk. 3 mm), designed for use with flexible ducted pipes.
The plenum has an inlet collar with double diameter Ø150 / Ø200 or triple diameter Ø100 / Ø125 / Ø150 (see dimensions table).
Prearranged with a pre-drilled inlet to be perforated as required.
The pre-fitted collars Ø90 (see dimensions table) are complete with calibration dampers that are adjusted using a screwdriver.

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• External insulation in 3 mm thick polyethylene
• Available with double inlet collar Ø150 – Ø200 or triple Ø100 – Ø125 – Ø150
• Outgoing collars as shown in the table
• Complete with brackets for ceiling mounting
• Holes provided for the entry of the upper and rear collar
• Sleeves complete with calibration damper with graduated adjustment by screwdriver
• Plenum supplied pre-assembled

Models

Available Models (7)

ACD600114

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 4 OUTLETS Ø150/200

A [mm] 230
B [mm] 240
C [mm] 250
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 4 - 90

ACD600115

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 6 OUTLETS Ø150/200

A [mm] 350
B [mm] 240
C [mm] 250
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 6 - 90

ACD600116

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 8 OUTLETS Ø150/200

A [mm] 465
B [mm] 240
C [mm] 250
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 8 - 90

ACD600117

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 10 OUTLETS Ø150/200

A [mm] 580
B [mm] 240
C [mm] 250
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 10 - 90

ACD600118

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 12 OUTLETS Ø150/200

A [mm] 700
B [mm] 240
C [mm] 250
INPUT Ø [mm] 150 / 200
No.of OUTLETS - Ø [mm] 12 - 90

ACD600119

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 4 OUTLETS Ø100/125/150

A [mm] 230
B [mm] 240
C [mm] 250
INPUT Ø [mm] 100 / 125 / 150
No.of OUTLETS - Ø [mm] 4 - 90

ACD600120

PLÉNUM FOR FLEXIBLE CORRUGATED PIPE Ø90 6 OUTLETS Ø100/125/150

A [mm] 350
B [mm] 240
C [mm] 250
INPUT Ø [mm] 100 / 125 / 150
No.of OUTLETS - Ø [mm] 6 - 90
