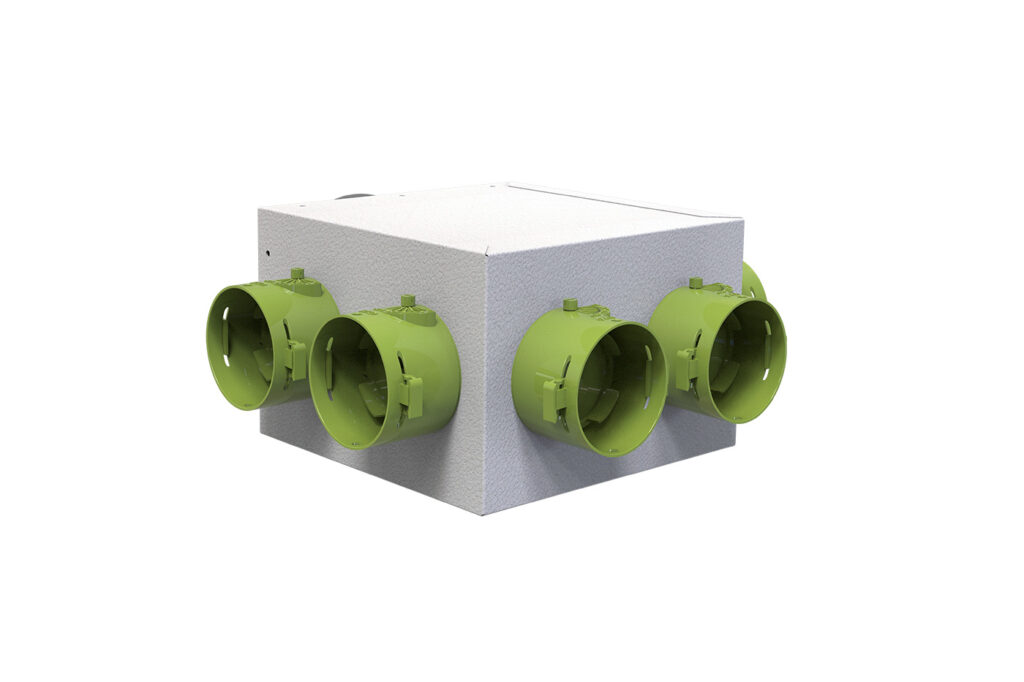

Insulated distribution plenum H160 for MVHR for flexible ducted hose 6 - 8 outlets Ø75 and Ø90 with sleeves complete with calibration damper with adjustment

Apply.co
Air treatment - MVHR

Distribution plenum for MVHR made of galvanised metal sheet and insulated externally with polyethylene (thk. 3 mm), designed for use with flexible ducted pipes.
The reduced height allows installation in confined spaces (e.g. false ceilings).
The plenum is equipped with an inlet collar for Ø150 mm pipes (not mounted) and 6 or 8 pre-mounted Ø75 or Ø90 outlet collars complete with damper.
It is equipped with two pre-drilled Ø150 inlets to be perforated as required.

TECHNICAL SPECIFICATIONS:

• Made of galvanised metal sheet.
• Inner insulation made of polyethylene thk. 3 mm.
• Inlet collar Ø150.
• Outlet collars as indicated in the table.
• Complete with brackets for ceiling mounting.
• Sleeves complete with calibration damper which can be adjusted using a screwdriver.
• Plenum supplied pre-assembled with front sleeves.
